Common Volvo XC90 Problems & the Parts That Fix Them

• Harsh or jerky gear changes, especially 2nd-to-3rd under light throttle
• Transmission slip or "flare" — engine revs rise but the car doesn't accelerate
• Delayed engagement when selecting Drive or Reverse
• Shuddering on acceleration
• Burnt-smelling transmission fluid
• "Transmission Performance Low" warning message

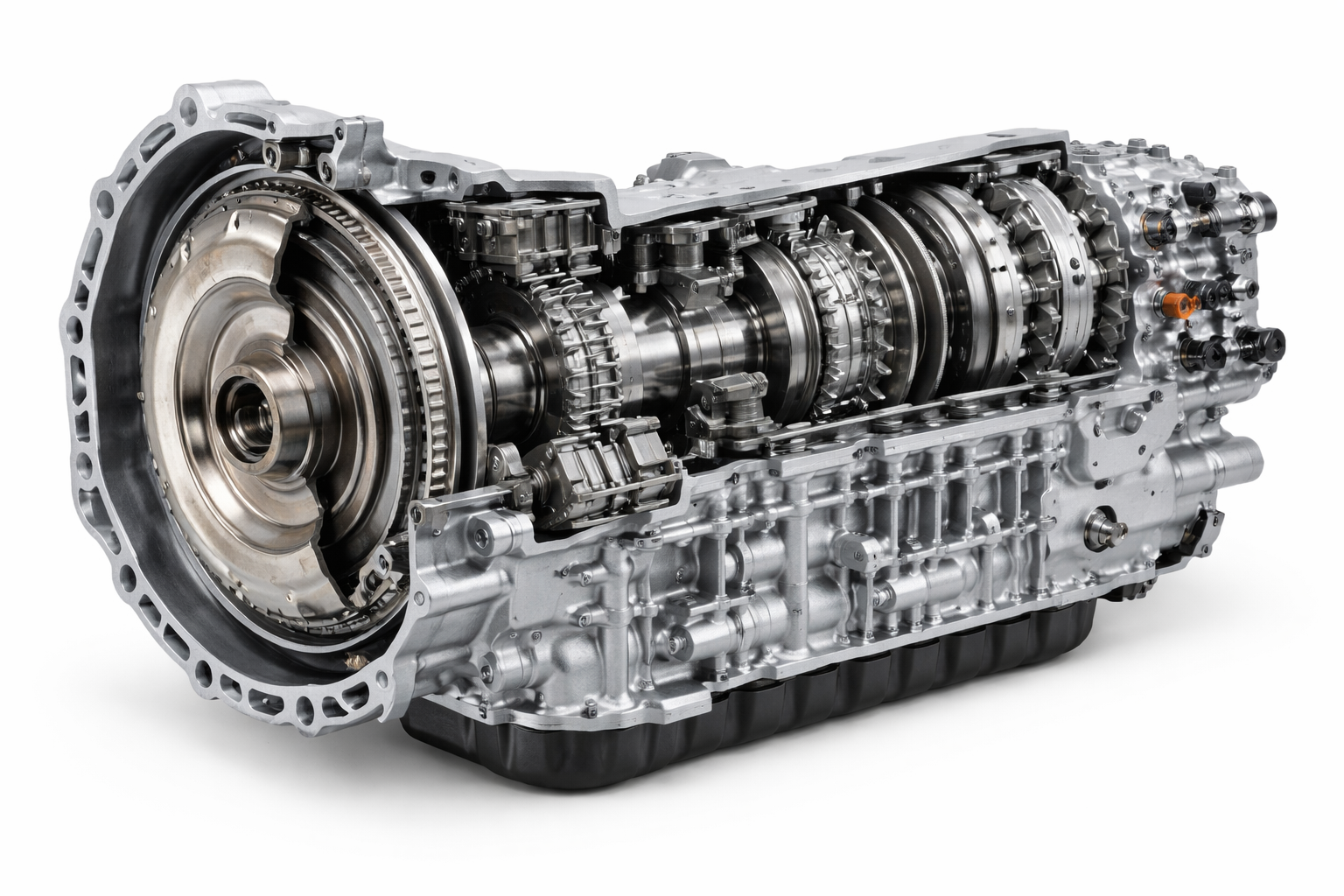

The six-speed Aisin TF-80SC fitted to most Gen1 XC90s from around 2006 onwards — and shared across the V70, XC70, S60, and S80 — has a documented weakness in its valve body. The hydraulic bores that control gear selection wear progressively, causing cross-leaks between circuits. Volvo specified the transmission as "sealed for life", a policy that specialists at Horton Cars and IPD USA have criticised — valve body wear can occur in fewer than 130 000 km on vehicles with frequent city stop-start driving if the fluid has never been changed. Earlier 2003–2005 XC90 T5 models used a weaker four-speed GM automatic, which had an even shorter lifespan. Affected years: 2003–2014 Gen1.

A transmission fluid service at ~80 000 km can extend valve body life significantly (R4 000–R7 000). Valve body replacement runs R12 000–R22 000. Full gearbox rebuild or used-unit swap: R35 000–R65 000. Road-test tip: at highway speed, lift and reapply throttle in 3rd gear — any shudder, jerk, or momentary rev flare is a valve body warning. Get the fluid checked for burnt smell or metallic particles before buying.

• Grinding or whirring from the front-left, especially when turning
• Vibration when cornering at low speed
• Vehicle silently becomes front-wheel-drive — no warning light, just loss of traction on gravel or in wet
• Metal shavings found in angle gear fluid on inspection
• Splined input shaft teeth stripped — gear unit free-spins

The angle gear is the transfer unit that splits drive from the front gearbox to the rear driveshaft on AWD models. It sits close to the exhaust, runs hot, and has a very small oil fill. Over time the oil evaporates or gets contaminated and the internals run dry. A second cause is mismatched tyres — the XC90's AWD system is sensitive to rolling circumference differences between axles. Run one significantly worn tyre and the system tries to continuously compensate, stripping the splines on the input shaft. Automotive Tech Info's angle gear guide documents this mechanism in detail. Affected years: 2003–2014 Gen1 AWD models.

Used angle gear unit replacement: R23 000–R37 000 all-in at an independent workshop. A used unit from a low-mileage donor car is substantially cheaper than new. Prevention: check and top up the angle gear fluid at every major service, and always keep all four tyres the same brand and size with matching wear levels.

• Oil level drops more than 1 litre per 1 000 km between services
• Blue-tinged exhaust smoke on cold starts
• Fouled spark plugs requiring premature replacement
• Thick dark sludge in the coolant expansion tank — stop driving immediately
• Milky discolouration on the oil filler cap
• Low oil pressure warning or engine overheating

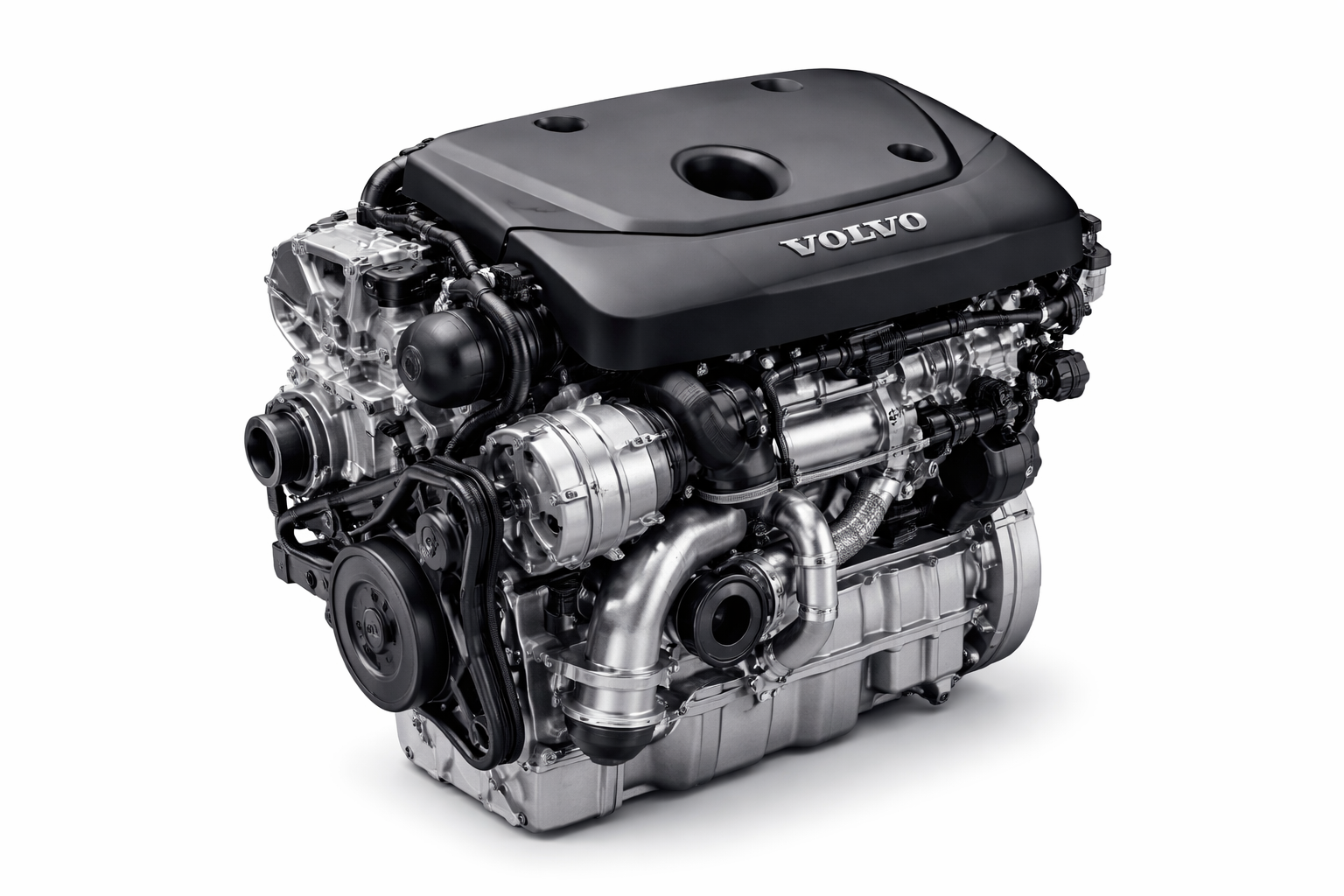

Volvo's 2.0-litre Drive-E engine (used in every T5, T6, and T8 XC90 from 2015 onwards) had a documented piston ring design issue on early examples that caused abnormal oil consumption. More serious is the oil cooler failure: when its internal walls corrode or seals degrade, high-pressure oil forces into the cooling circuit. Go-Parts' technical documentation describes the result as a thick, dark, greasy sludge in the coolant expansion tank. Find that and stop driving immediately — the engine oil is now contaminated and catastrophic failure is imminent. Volvo's own Technical Journals acknowledge the defective oil cooler on 2015–2021 SPA-platform vehicles, though no formal recall was issued. Affected years: 2015–2020 XC90 T5/T6/T8.

Check the coolant reservoir at every fuel stop — any dark discolouration is a red flag. Oil cooler replacement: R8 000–R18 000. Complete engine rebuild after driving on contaminated oil: R35 000–R60 000. A quality used short-block from a low-mileage donor car often makes more financial sense than a badly damaged rebuild.

• Whistling or hissing from the engine — stops when you remove the oil filler cap
• Rough or oscillating idle, poor throttle response
• Check Engine light — lean fuel trim codes P0171 or P0174
• Excessive oil consumption and external leaks from pushed-out crankshaft seals
• Dipstick pops up or shows oil residue around the tube from crankcase pressure

The PCV system routes blow-by gases from the crankcase back into the intake. Over time, oil vapour deposits clog the oil trap and connecting hoses. When the system gets blocked, crankcase pressure rises and pushes out the crankshaft seals. In severe cases it draws unmetered air into the intake, triggering lean codes. IPD USA notes the condition is common on high-mileage five-cylinder engines and recommends proactive replacement before problems develop. Affected years: Gen1 all engines (especially 2.5T, 3.2); Gen2 Drive-E from 2015+.

On Gen1 models the oil trap is reasonably accessible. On the Gen2 Drive-E (2016+), you need to remove the intake manifold — a half-day workshop job. Parts: R1 800–R4 000; total workshop cost: R5 000–R12 000. Always replace the associated hoses at the same time — old hoses often crack once disturbed.

• Car sits noticeably low on one corner after overnight parking
• Suspension warning light or "Service Required" message
• Grinding, squeaking or groaning over bumps
• Ride height inconsistencies — one side higher than the other
• Air suspension compressor runs constantly or fails to raise the vehicle

The XC90 was available with Volvo's 4C active chassis on Gen1, and an air suspension option on Gen2 — both generations have a failure record to match. In 2021 Volvo voluntarily extended the warranty on the rear suspension air compressor for 2016–2020 XC90 models after a valve inside the unit was found to contain residue from an anti-corrosive agent causing malfunction. This is documented in NHTSA TSB MC-10194228. On Gen1 vehicles, the air spring rubber bellows perish — South Africa's UV intensity and temperature extremes accelerate this. A documented Gen1 design flaw: Volvo used plastic zip ties to secure the dust covers at the factory — they slip off, allow dust ingress, and accelerate perishing. Affected years: Gen1 2003–2014 (4C option); Gen2 2015–2020 (compressor TSB).

Height sensor replacement: R2 000–R5 000. Used compressor from a scrap yard: R8 000–R15 000 fitted (versus R18 000+ for new). Single air spring: R6 000–R14 000; full four-corner set: R22 000–R45 000. For high-mileage Gen1 vehicles, a conversion to standard passive springs eliminates ongoing maintenance cost entirely.

• Centre display freezes, shows a black screen, or reboots randomly
• Audio, parking sensors, and indicators lose function when screen freezes
• Battery flat after a day or two of not driving — car won't start
• Infotainment cycling on/off every few minutes, preventing vehicle sleep mode
• Climate control, navigation, and phone integration all drop out with the screen

The Gen2 XC90 made Volvo's Sensus touchscreen the control centre for almost everything — until the screen freezes or goes black. Volvo's own support page acknowledges that the centre display can freeze, advising owners to let the vehicle sleep for 30 minutes to self-recover. The more damaging problem is battery drain: a malfunctioning Infotainment Head Unit (IHU) cycling on and off every five to eight minutes prevents the vehicle from entering sleep mode, draining the 12V AGM battery completely within a day or two. Software updates resolved many bugs on earlier Sensus builds, but not all units received them. An important note for SA owners: the Volvo AGM battery is chemistry-specific — fitting a standard wet-cell triggers persistent "Low Battery" warnings even when fully charged. Affected years: 2015–2019 Gen2.

First step: check whether your IHU has the latest firmware — a dealer OTA update costs R0–R1 500 and resolves many cases. If the parasitic drain disappears when the IHU is disconnected, the head unit needs replacing (R18 000–R35 000). Replacement OEM-spec AGM battery: R2 500–R5 000.

• Hard cold starting or reluctance to start
• Rough running, misfires, heavy black or grey smoke
• Engine warning light with injector-related fault codes
• Rattling from the front of the engine on the first crank — timing belt tensioner warning
• Loss of power on one or more cylinders

The D5 diesel XC90 (2.4-litre D5244 engine) is strong and torquey but has two specific vulnerabilities. First, diesel injector wear — high-pressure common-rail injectors deteriorate with mileage, typically from around 150 000 km. What Car?'s used XC90 guide specifically advises walking away from diesel models reluctant to start cold. Second, the timing belt — the D5 uses a rubber belt, not a chain. A snapped belt on this interference engine causes valve-to-piston contact and catastrophic, unrepairable damage. Volvo's official interval is 120 000 km or 10 years, but many independent mechanics advise 60 000–80 000 km given documented failures below the manufacturer interval on cars with partial service histories. Affected years: 2003–2014 Gen1 D5.

Single injector replacement: R4 000–R9 000; full set of five: R18 000–R40 000. Timing belt kit with tensioner and idler: R6 000–R14 000 — trivial compared to an engine rebuild at R60 000+. Always confirm the timing belt replacement date and mileage in the service book. If unknown, budget for it immediately — this is non-negotiable.
