Used Volvo Gearboxes for Sale

The Aisin TG-81SC is the world's first transverse 8-speed automatic transmission, designed specifically for Volvo's SPA and CMA platforms as the partner to the Drive-E engine family. With eight closely-spaced ratios, this gearbox provides imperceptible shifts and keeps Drive-E engines operating in their most efficient power band at all times. South African Volvo owners on the SPA platform consistently praise the Geartronic 8-speed for its refined operation.

The Aisin TF-80SC is a Lepelletier-type six-speed automatic transmission that served as the primary gearbox across Volvo's range for over a decade. Known for smooth shift quality via its planetary gearset design, this transversely-mounted unit handles both front-wheel-drive and AWD applications with equal competence. Its adaptive shift programming learns driver behaviour for personalised gear selection.

The Aisin AW55-50/51SN is a five-speed automatic transmission that was a workhorse across Volvo's mid-2000s lineup. The 50SN variant serves FWD models while the 51SN handles AWD applications. Parts availability remains excellent in South Africa, making rebuilds straightforward and affordable.

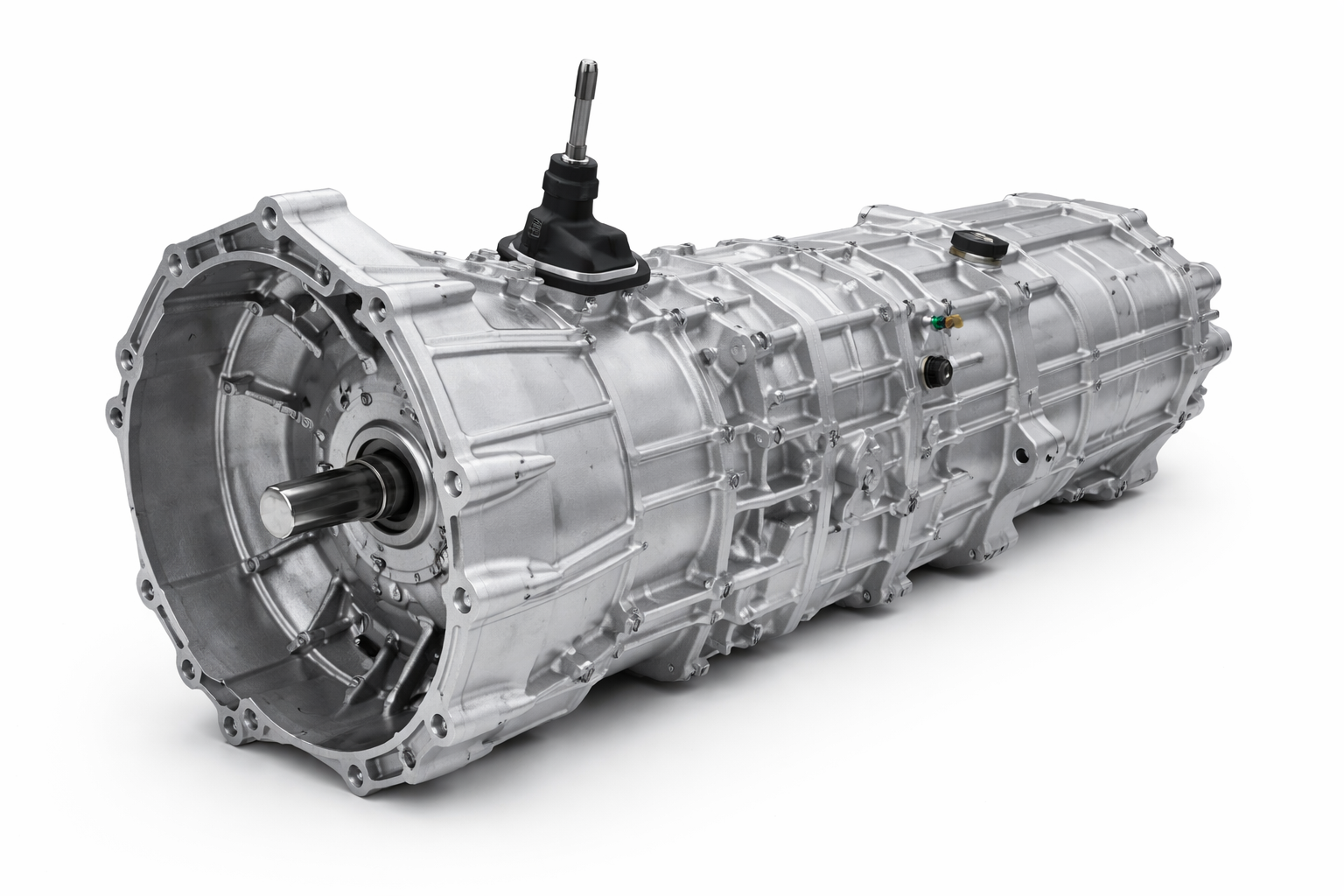

The Getrag M66 six-speed manual provides an extra ratio over its M56 predecessor for improved highway fuel economy and a more closely-stacked gear set for spirited driving. Available in M66W (FWD) and M66C (AWD) variants. The M66 was the last manual transmission widely offered by Volvo before the brand shifted entirely to automatics with the SPA platform. South African driving enthusiasts value M66-equipped Volvos for the engaging driving experience.

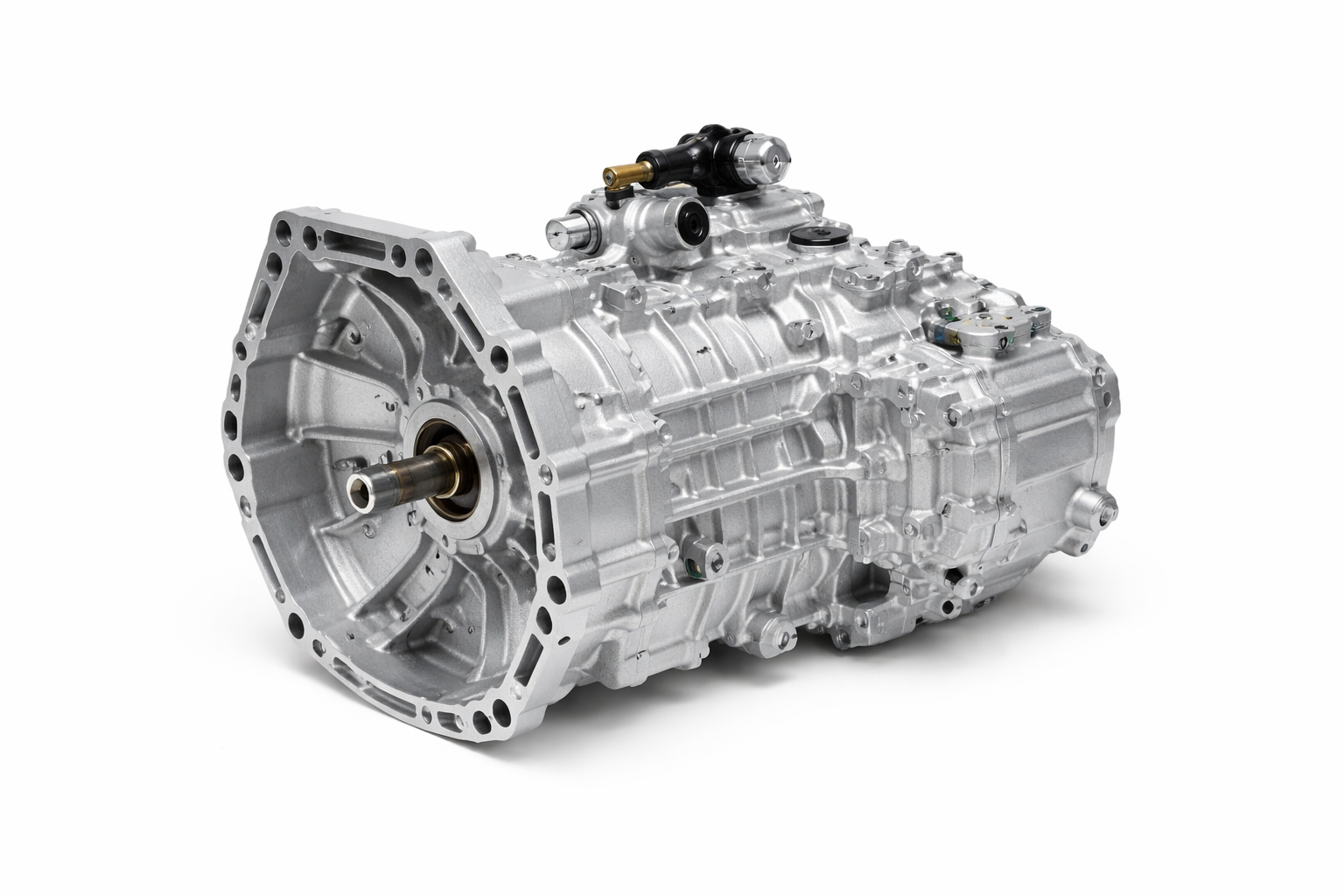

The M56 is Volvo's own five-speed manual transaxle with an unorthodox three-shaft design using one input shaft and two layshafts. Paired primarily with naturally aspirated and light-pressure turbo five-cylinder engines, this robust gearbox delivers a positive shift feel that manual driving enthusiasts cherish. South African Volvo purists seeking the authentic five-cylinder manual experience specifically request M56-equipped models.

The Getrag Powershift MPS6 is a six-speed dual-clutch transmission using separate wet clutch packs for odd and even gears, delivering lightning-fast shifts that enhance both performance and fuel economy. In Volvo applications it was primarily paired with diesel engines. South African diesel Volvo owners who enjoy responsive gear changes without a clutch pedal find the Powershift an engaging alternative to conventional automatics.

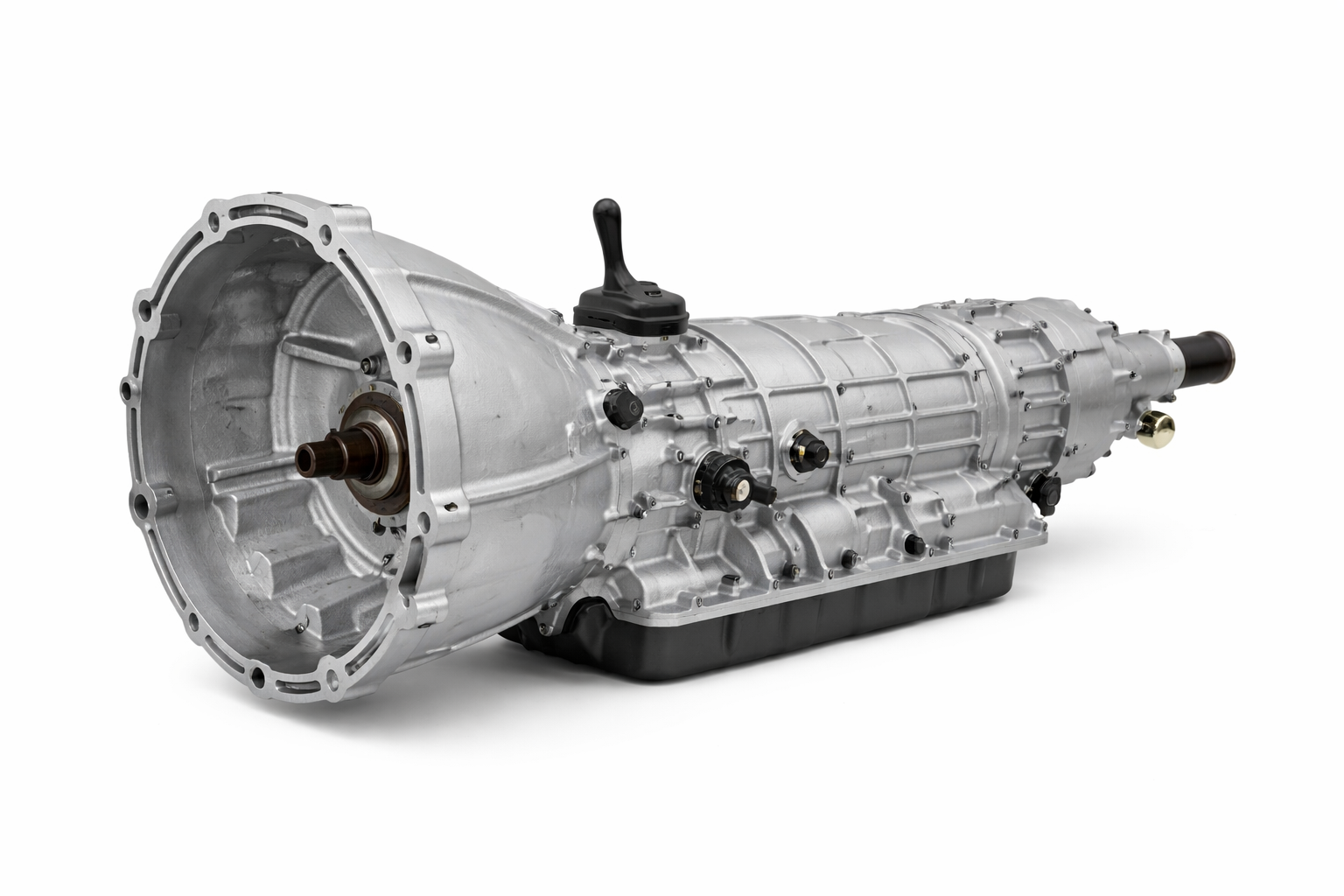

The Aisin AW70/71/72 series four-speed automatics introduced overdrive for improved highway economy and electronic shift control. The AW70 served standard rear-wheel-drive models, the AW71 was the heavy-duty variant for turbocharged applications, and the AW72L was modified for the 850. These transmissions are known for their longevity when properly maintained, with many exceeding 200,000 km.

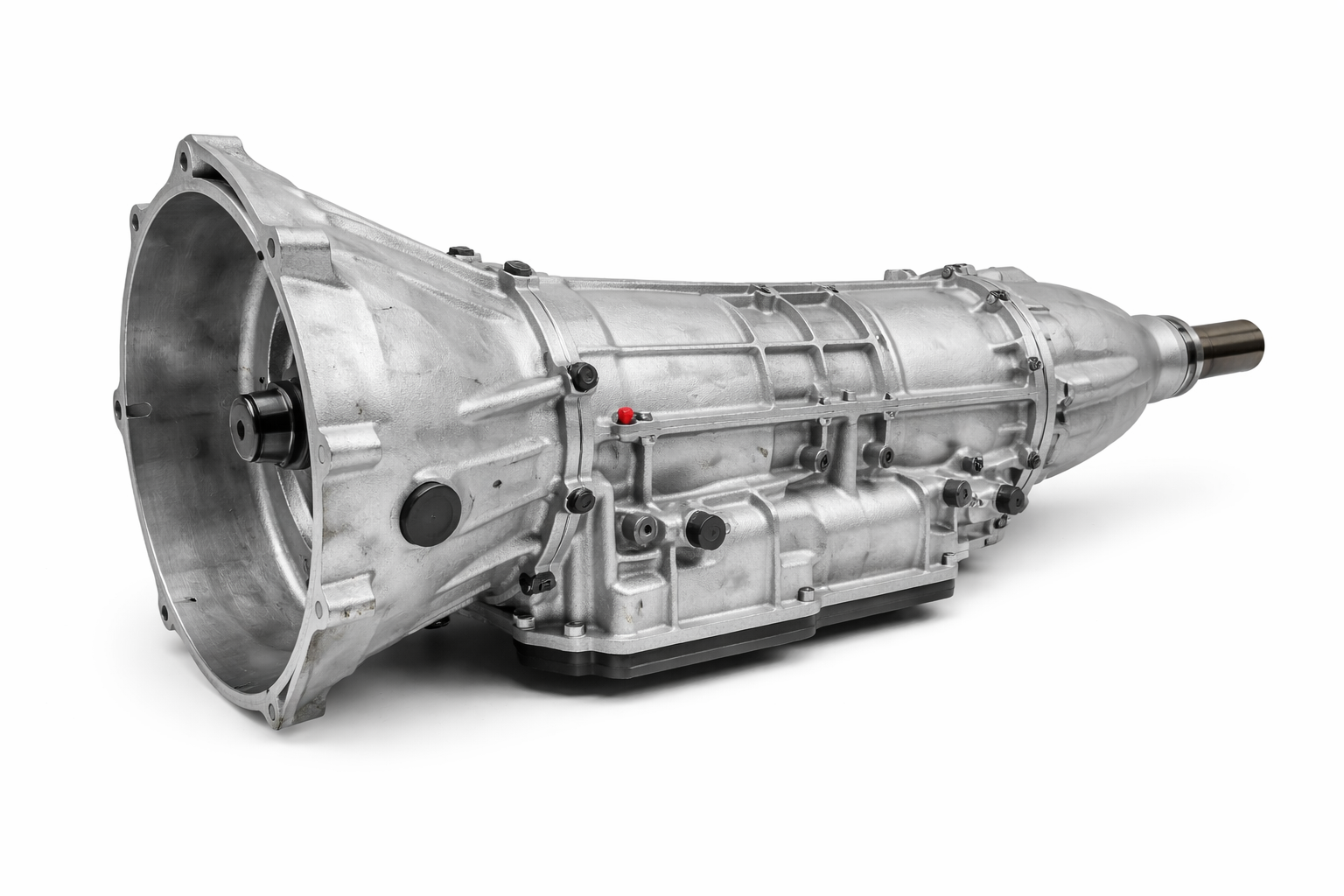

The BorgWarner BW35 and BW55 are the classic three-speed automatic transmissions that served Volvo's rear-wheel-drive models for decades. These simple, robust units may lack modern sophistication, but their mechanical simplicity translates to exceptional reliability and ease of repair. South African classic Volvo owners appreciate these gearboxes for their virtually bulletproof construction.

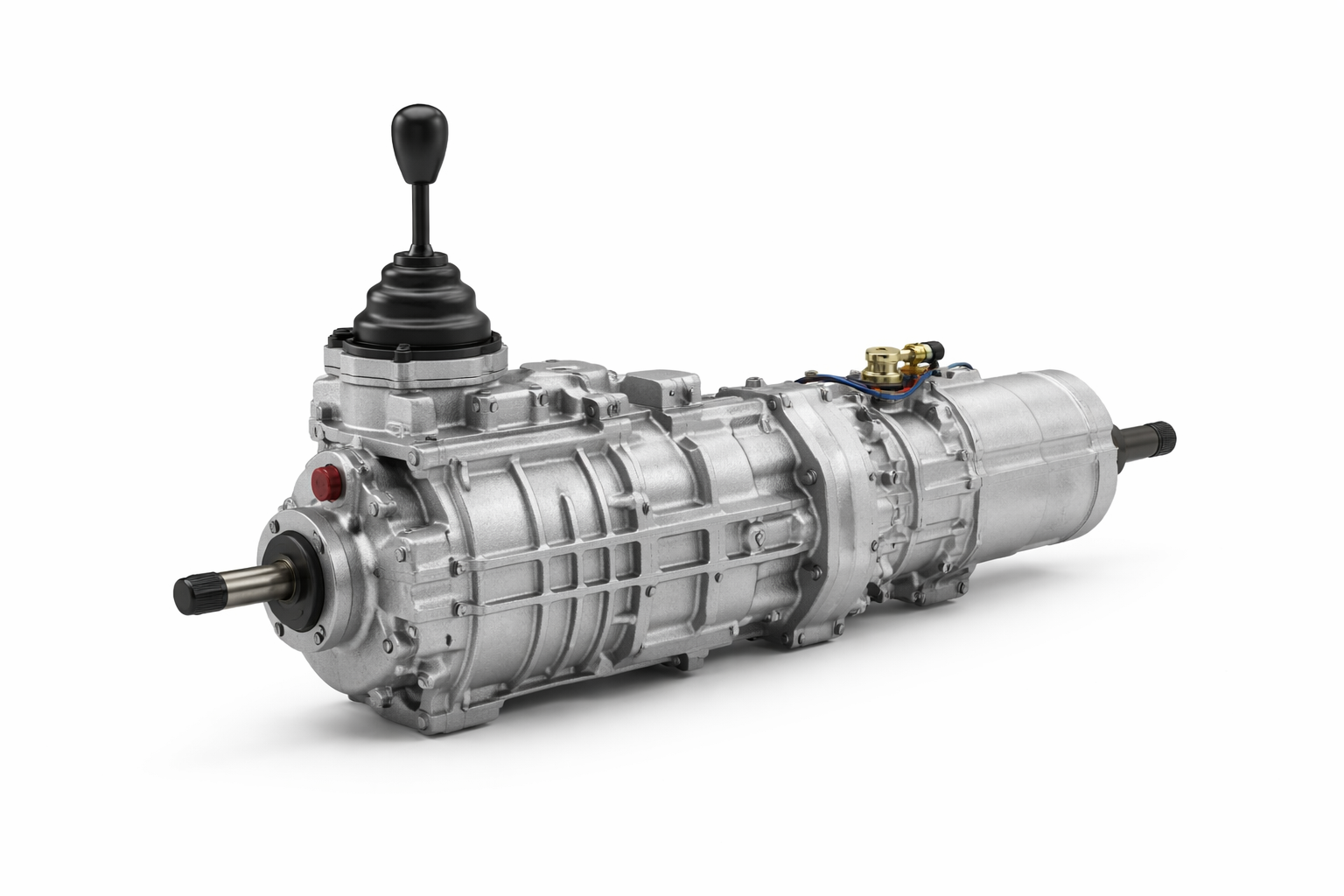

The M46 is Volvo's classic four-speed manual gearbox with an electrically engaged Laycock de Normanville overdrive unit, effectively creating a five-speed gearbox with a 0.80:1 overdrive ratio for relaxed highway cruising. The M46 provides the definitive classic Volvo manual driving experience, with the satisfying click of the overdrive engagement adding to the character.

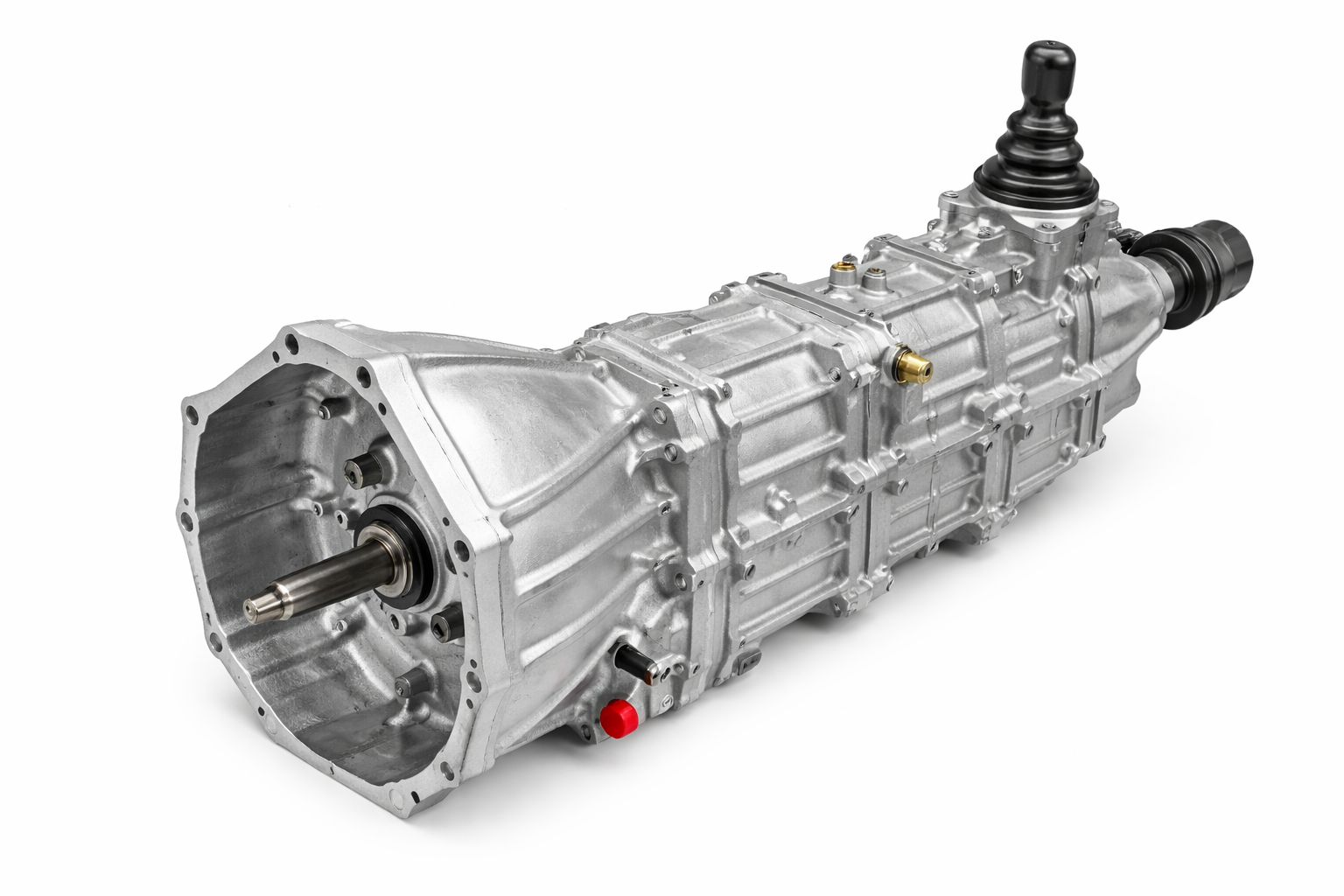

The M90 is Volvo's own five-speed manual transmission for the rear-wheel-drive platform, replacing the M46 overdrive setup with a fully integrated fifth gear. Renowned among classic Volvo enthusiasts for its satisfying mechanical engagement and robust construction, the M90 provides a direct driving connection to the legendary Redblock engine. South African 240 and 940 owners consider the M90 manual the purist's choice.

The Recharge single-speed reduction gearbox converts high-speed electric motor rotation into usable wheel torque through a fixed gear ratio. Unlike conventional multi-speed transmissions, the EV reduction gear requires no shifting, resulting in seamless acceleration from standstill to top speed. With minimal moving parts and no clutch or torque converter, this transmission offers exceptional reliability and virtually zero maintenance.
