Used Volvo Differentials for Sale

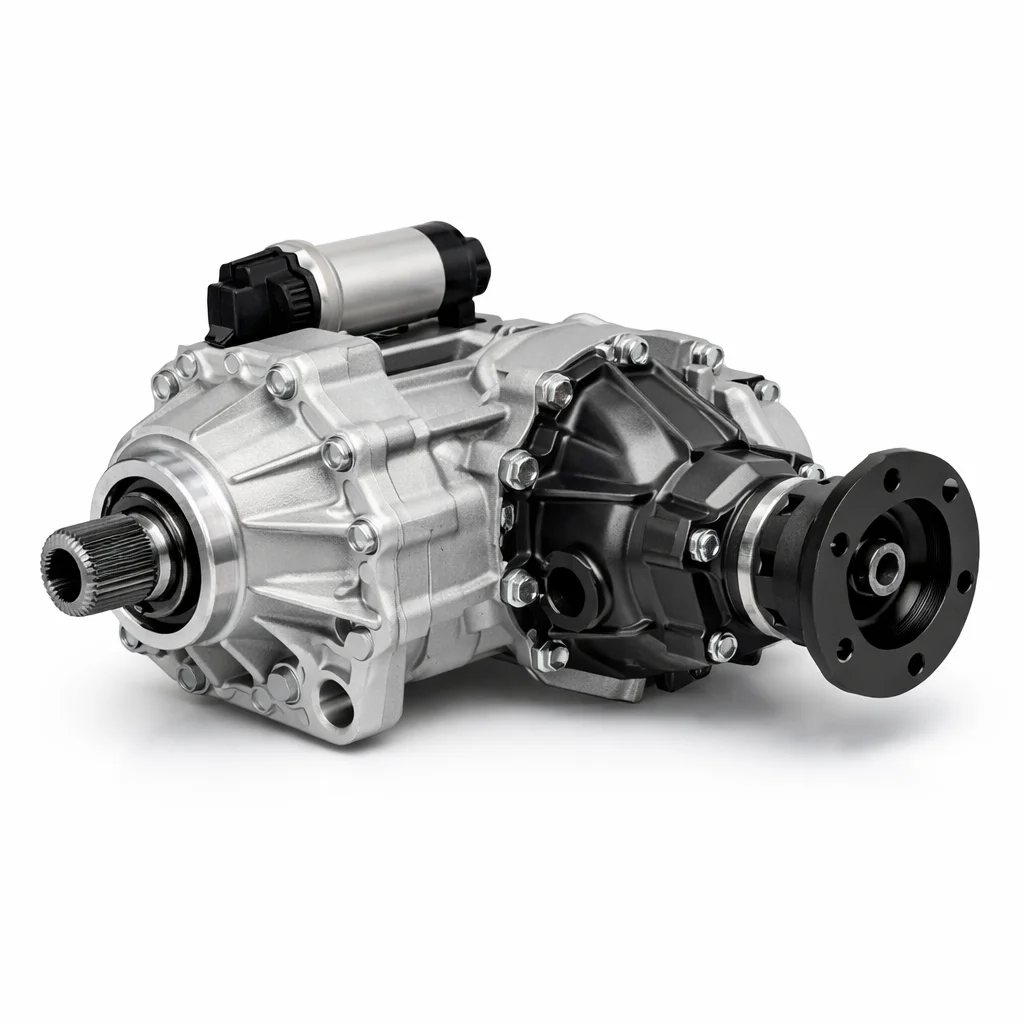

Used Volvo differential and AWD component prices in South Africa range from R5,700 for a Haldex rear differential to R20,000 for a BorgWarner rear drive module (newer SPA/CMA platform). Angle gears range from R8,000 to R15,000. XC90 heavy-duty rear diffs are typically R8,000-R18,000. Contact us with your model, year, and drivetrain type for an accurate quote.

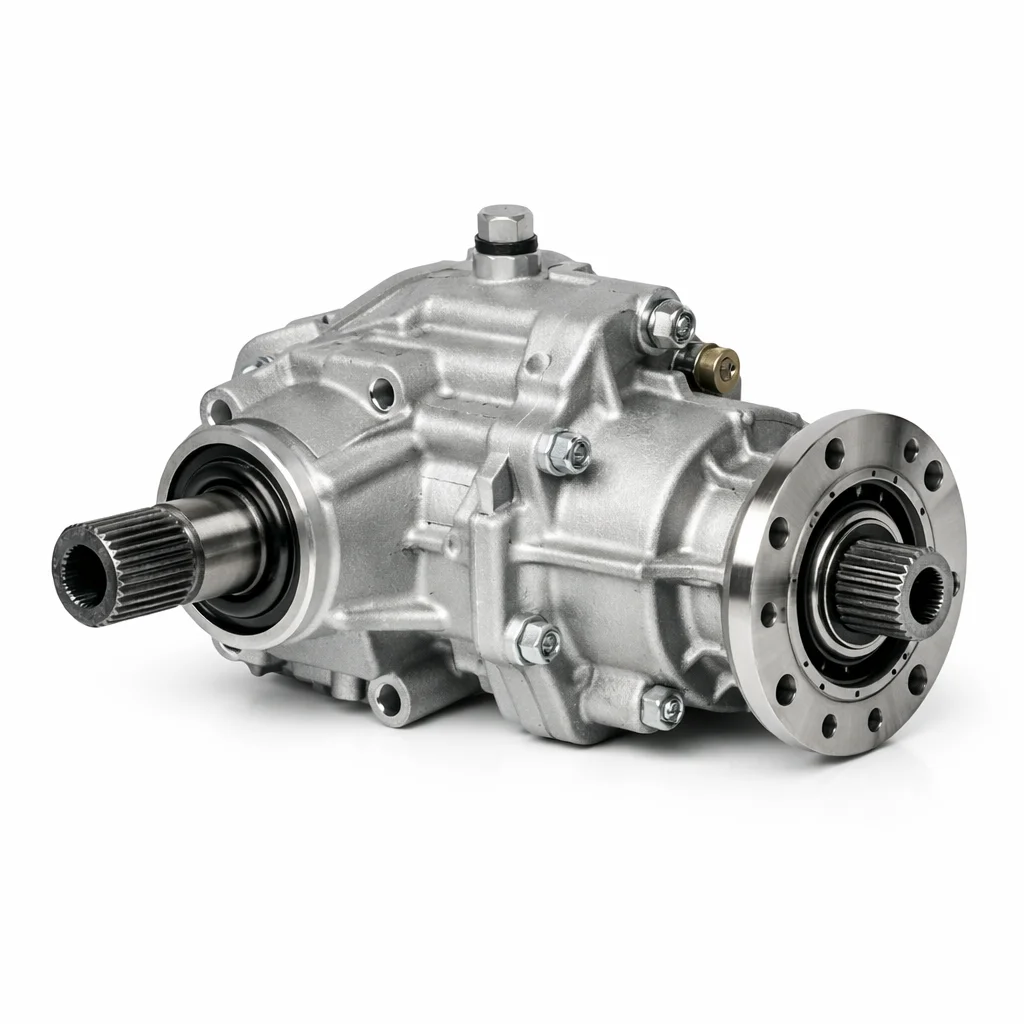

The angle gear (bevel gear) is the transfer unit mounted on the front of the gearbox that redirects power to the rear propshaft on AWD Volvos. It fails because its seals deteriorate over time, allowing gear oil to leak out. Without oil, the gears overheat and are damaged. Signs of failure include a whining noise from the front of the gearbox, oil drips under the car, and eventually grinding noises. A reseal kit costs from R1,500 if caught early, but gear damage requires a replacement unit.

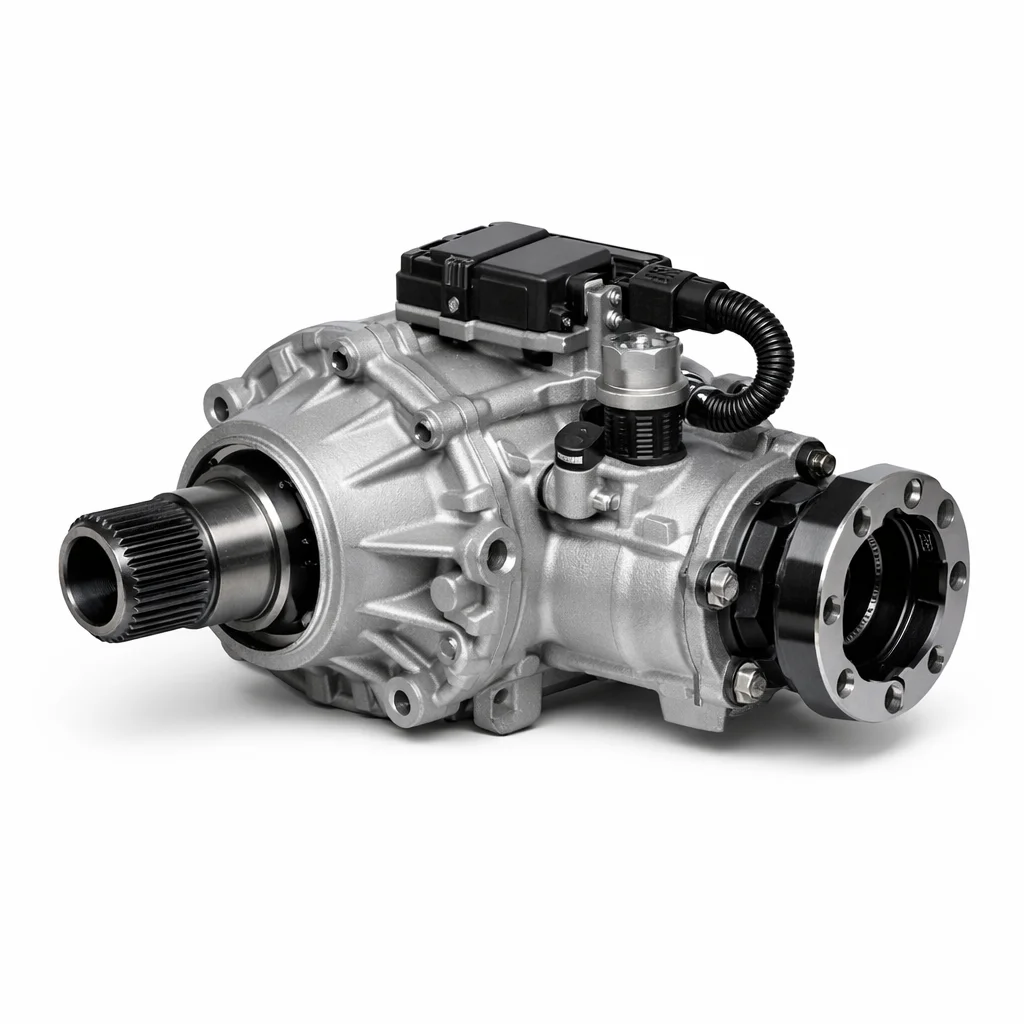

A Haldex service involves draining and replacing the Haldex oil (special specification fluid) and replacing the filter/strainer inside the Haldex coupling. This should be done every 60,000 km or every 3 years. Neglecting this service leads to clutch pack wear, reduced AWD function, and eventually Haldex coupling failure. A Haldex service kit costs from approximately R1,000 and the service takes about 1-2 hours at a workshop.

Signs of a failing Volvo differential include: whining or humming noise from the rear (increases with speed), clunking when changing direction, vibration through the drivetrain, AWD warning light on the dashboard, oil leak from the diff housing, and reduced traction in slippery conditions. On AWD models, the AWD system may go into limp mode and only drive the front wheels.

Volvo offers AWD on most models as an option. The XC90, XC60, and XC70 are most commonly found with AWD. The XC40, V60 Cross Country, S60, V70, and S80 are also available with AWD. Models with 'Cross Country' in the name always have AWD. Check your vehicle's VIN or look for the AWD badge on the boot — if your Volvo is FWD (front-wheel drive only), it has no rear differential or angle gear to worry about.

While theoretically possible, converting a FWD Volvo to AWD is not practical or cost-effective. It requires a different gearbox (with angle gear provision), a propshaft, rear differential, rear axle modifications, Haldex wiring harness, and ECU reprogramming. The cost would exceed R100,000+ and would likely affect the vehicle's resale value negatively. Buying an AWD model is always the better option.
