Volvo Sensors For Sale

The O2 (Lambda) sensor is one of the most commonly replaced sensors on Volvo vehicles, monitoring exhaust gas oxygen content so the ECU can continuously fine-tune fuelling. A failing O2 sensor typically triggers a check engine light and noticeably worsens fuel economy before other symptoms appear. South African Volvo owners frequently need replacement O2 sensors due to fuel quality variations and high-mileage driving conditions on local roads.

The MAF sensor uses a heated wire or film element to measure incoming airflow, providing critical data the ECU needs to match fuel delivery to actual air volume. Contamination from oil vapour or dirt is the most common cause of MAF failure on Volvo engines, often producing intermittent symptoms before complete failure. South African Volvo owners should be aware that dusty driving conditions can accelerate MAF sensor degradation, making regular air filter maintenance essential.

The MAP sensor reads absolute pressure in the intake manifold, giving the ECU a direct measurement of engine load that is especially critical on turbocharged Volvo engines for managing boost levels. On naturally aspirated models it works alongside or in place of the MAF sensor to calculate air charge, while on turbo models it is essential for preventing overboosting. South African Volvo turbo owners in particular should watch for MAP sensor issues, as altitude variations across the Highveld and coastal regions place extra demand on accurate pressure readings.

The crankshaft position sensor reads a toothed reluctor ring on the crankshaft to provide the ECU with precise engine speed and position data, without which the engine cannot run at all. CKP sensor failure on Volvos typically presents as a sudden no-start or random stalling with no warning, often caused by heat soak cracking the sensor internally. South African Volvo owners stranded by a failed CKP sensor will find this is one of the most common breakdown causes on both five-cylinder and Drive-E engines.

The camshaft position sensor works in concert with the crankshaft position sensor to give the ECU complete information about engine timing, enabling sequential injection and variable valve timing control. Unlike a CKP failure which typically causes a no-start, a CMP failure often allows the engine to run in a degraded backup mode with noticeably reduced performance. South African Volvo owners with CVVT-equipped five-cylinder or Drive-E engines may notice limp mode activation as the ECU defaults to fixed valve timing when the CMP signal is lost.

The throttle position sensor is mounted on the throttle body and uses a potentiometer or contactless Hall effect element to report throttle opening percentage to the ECU in real time. On modern drive-by-wire Volvo models the TPS is integrated into the electronic throttle body assembly, while older cable-throttle models use a separate sensor. South African Volvo owners experiencing jerky throttle behaviour or unexpected limp mode should have the TPS checked, as worn sensors can produce erratic voltage signals that confuse the ECU.

The ECT sensor uses a thermistor element immersed in the coolant circuit to provide the ECU with accurate engine temperature data, which influences cold-start enrichment, fan activation, and thermostat control strategies. A faulty ECT sensor commonly causes the ECU to assume the engine is permanently cold, resulting in over-rich fuelling, or permanently hot, triggering unnecessary fan operation. South African Volvo owners dealing with hard cold starts on winter mornings or fans that never stop running should consider the ECT sensor as a likely and inexpensive culprit.

The IAT sensor measures incoming air temperature, which the ECU uses alongside pressure or airflow data to calculate precise air density for accurate fuelling. On many Volvo models the IAT is integrated into the MAF sensor housing, while on others it is a standalone unit in the intake tract. South African Volvo owners may notice IAT-related symptoms more prominently during seasonal temperature extremes, as the sensor helps the ECU compensate for the significant difference between cold Highveld winter mornings and hot Lowveld summer afternoons.

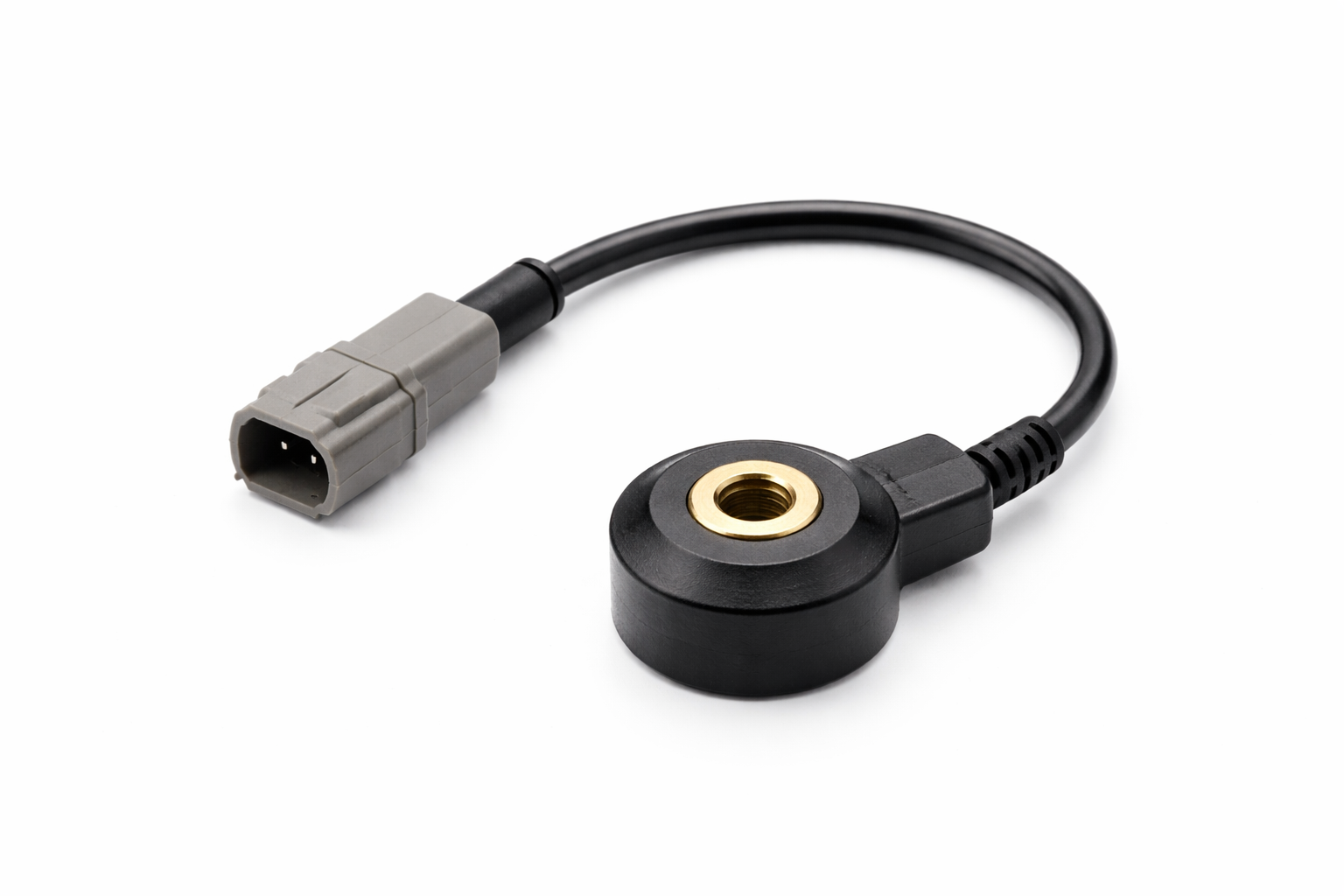

The knock sensor is a piezoelectric accelerometer bolted to the engine block that detects the specific vibration frequency of detonation, allowing the ECU to pull back ignition timing before engine damage occurs. When the knock sensor fails, the ECU adopts a conservative timing map that significantly reduces power output as a safety measure. South African Volvo owners using lower-octane fuel or driving turbocharged models at altitude on the Highveld may find the knock sensor working harder than coastal drivers, and a failed sensor will make the engine feel noticeably sluggish.

The ABS wheel speed sensor reads a toothed ring on each wheel hub or CV joint to report individual wheel speeds to the ABS module, which uses this data for anti-lock braking, traction control, and electronic stability programmes. Failure of a single wheel speed sensor typically illuminates both ABS and traction control warning lights and disables these safety systems entirely. South African Volvo owners should pay attention to wheel speed sensor condition, as exposure to road debris, dust, and occasional gravel roads can damage sensor cables or contaminate the sensor face.

The TPMS sensor is mounted inside each wheel on the valve stem, continuously measuring tyre pressure and temperature and transmitting this data wirelessly to the vehicle's receiver module. Volvo uses direct TPMS with individual sensors rather than the indirect system that estimates pressure from wheel speed differences, providing more accurate and reliable readings. South African Volvo owners should ensure TPMS sensors are replaced or re-programmed when fitting new tyres or wheels, as sensor batteries have a finite lifespan and harsh local road conditions can accelerate wear.
